Nikon Eclipse Ts2 inverted microscope

The Nikon Eclipse Ts2 inverted microscope, available through American Instrument Exchange, is designed to enhance efficiency in cell culture observation and documentation. It features Nikon’s CFI60 optical system and LED illumination, providing clear images with reduced setup time. This model is equipped with 4x, 10x, and 20x objectives, providing versatile magnification options for diverse applications.

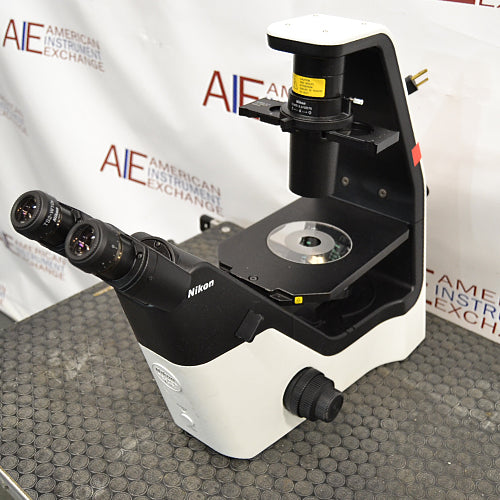

Nikon Eclipse T2 Microscope

Key Features:

  • LED Illumination: The alignment-free LED light source ensures consistent brightness and eliminates the need for frequent bulb replacements.
  • Emboss Contrast Technique: This cost-effective method delivers pseudo-three-dimensional, glare-free images of thick specimens without requiring additional optics.
  • User-Friendly Design: Controls for basic functions are conveniently located on the front panel, while diascopic and epi-fluorescence illumination controls are thoughtfully positioned on the sides to streamline workflow.
  • Mechanical Stage Option: An optional high-performance mechanical stage accommodates various culture vessels, including well plates and large flasks, enhancing versatility.

Key Specifications:

  • Optical System: CFI60 Infinity Optical System​

  • Observation Methods: Brightfield, Apodized Phase Contrast, Phase Contrast, Emboss Contrast​

  • Illumination:

    • Diascopic: High luminescent white LED illuminator (Eco-illumination) with a built-in fly-eye lens

    • Epi-fluorescence (Ts2-FL model): LED illuminator with a built-in fly-eye lens; supports up to three fluorescence LED units with selectable wavelengths​

  • Eyepieces: 10x (22 mm F.O.V.), 15x (16 mm F.O.V.), 20x (12.5 mm F.O.V.)​

  • Nosepiece: Quintuple

  • Condenser: ELWD Condenser (NA 0.3, W.D. 75 mm)​

  • Stage Options:

    • Plain Stage: 170 mm (X) x 247 mm (Y)​

    • Mechanical Stage (optional): 126 mm (X) x 78 mm (Y); accommodates various culture vessels​

  • Dimensions: 236 mm (W) x 548 mm (D) x 471 mm (H)​

  • Weight: Approximately 13 kg​

  • Power Consumption: 15W

Applications:

The Eclipse Ts2 is suitable for routine laboratory tasks, including:​

Cell Culture Observation: Ideal for monitoring cell growth and morphology in various culture vessels.​

  • Emboss Contrast Imaging: Utilizes a bright-field objective lens and contrast sliders to produce pseudo-three-dimensional, glare-free images of thick specimens, such as iPS cells, without additional optics. ​

  • Fluorescence Imaging (Ts2-FL model): Equipped with LED-based epi-fluorescence illumination, suitable for observing fluorescently labeled samples.​

Nikon Eclipse Ts2 Inverted Microscope

American Instrument Exchange offers reconditioned units of the Nikon Eclipse Ts2, thoroughly tested to meet manufacturer specifications and accompanied by a 90-day warranty. This model provides a cost-effective solution for laboratories seeking reliable inverted microscopy capabilities.​

American Instrument Exchange offers reconditioned units, thoroughly tested to meet manufacturer specifications, accompanied by a 90-day warranty.  This model provides a cost-effective solution for laboratories seeking reliable inverted microscopy capabilities.
